Universal milling and drilling system UFS

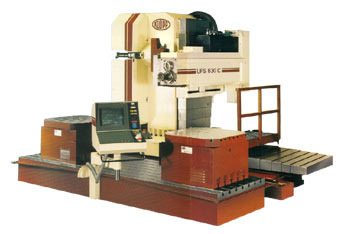

Universal milling and drilling system UFS

With the UFS, all the movements occur in the tool. The clamping range always remains in the same position for the user. With a partition and additional fuse protection it is possible to work on one side and concurrently have a new setup on the other side.

Optional execution with automatic tool changer, double gripper and chain magazine with 30/60 tools (UFS 1000 C).

The UFS is ideal for pendulum milling because it meets the engineering requirements.

Standard version:
  • Horizontal/vertical milling head with additional rotary axis, which can be swiveled and rotated automatically over the control unit
  • 3-phase drive, servo
  • Work-area housing, electrically interlocked
  • Flat guides (beam guides) in all axes, hardened and ground steel, opposite side plastic-coated
  • Telescope cover for all guides
  • Automatic tool clamping equipment for tools according to DIN 69871/72
  • Tool-holding fixtures ISO 50 according to DIN 2079
  • Main drive 25 kW at 40% ED
  • CNC-path control Heidenhain/Siemens
  • Hour meter
  • Swiveling Control panel
Technical Data:
Machine type UFS 1000 UFS 1000 C
Machine table (supplementary equipment at an additional charge)
Mounting area 2100 x 1050 mm 2100 x 1050 mm
Bed height 750 mm 750 mm
Number of T-slots 7 7
Slots range according to DIN 650 22 mm 22 mm
Centre distance 150 mm 150 mm
Table load maximum 10000 kg 10000 kg
Adjustment range/option
Longitudinal axis 1500 mm 1500 mm
Longitudinal axis upon request (additional charge) 2000, 3000, 4000, 5000, 6000 mm 2000, 3000, 4000, 5000, 6000 mm
Transverse axis 800 mm 800 mm
Vertical axis 1100 mm 1100 mm
Main drive 3-phase motor, servo
Power 25 kW 25 kW
Maximum torque 1150 Nm 1150 Nm
Key rpm 212 min-1 212 min-1
Tool-holding fixtures 50 ISO, according to DIN 2079 50 ISO, according to DIN 2079
for tool DIN 69871/72 DIN 69871/72
Spindle diameter in front bearing 100 mm 100 mm
Speed range, continuously variable
programmable S-analog 35-3550 min-1 35-3550 min-1
Gear shifting, automatically operated 2 2
Feed drives 3-phase motor, servo
Feed range (longitudinal, transverse, vertical) 1-4000 mm/min 1-4000 mm/min
Feed force in all axes 12000 N 12000 N
Rapid traverse/Option
longitudinal, transverse, vertical 10000/15000 mm/min 10000/15000 mm/min
Tool changer
Number of magazine places with variable position encoding (on request, additional charge) - 30/(60)
Maximum tool diameter - 140 mm
Maximum tool weight - 15 kg
Maximum tool length - 300 mm
Throat/option with machines with
Horizontal milling spindle:
middle of spindle to top edge of machine table		 380-1480 mm 380-1480 mm
HV- and HVD-milling head:
middle of horizontal spindle (lower edge of vertical spindle) to top edge of machine table		 145-1245 mm 145-1245 mm
Rigid vertical head + quill head:
lower edge of vertical spindle to top edge of machine table		 280-1380 mm -
Bi-rotational milling head (manually):
middle of horizontal spindle (lower edge of vertical spindle) to top edge of machine table		 165-1265 mm -
Connection rating, dimensions and weight
Space equipment-related equipment-related
Total weight equipment-related equipment-related
Total connection rating 36 KVA 36 KVA
