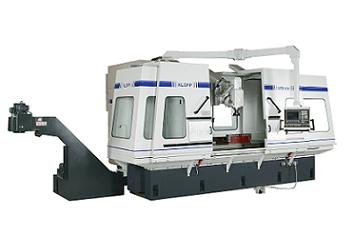

UFB standard version:
- Horizontal-/vertical milling head, automatic with swivel control
- 3-phase drive, servo
- Work-area housing, electrically interlocked
- Flat guides (beam guides) in all axes, hardened and ground steel with opposite side plastic-coated
- Telescopic covers for all guides
- Automatic tool-clamping unit for tools according to DIN 69871/72
- Tool-holding fixtures ISO 50 according to DIN 2079
- Main drive 22 kW at 60% ED
- Chip conveyor (joint hinge)
- Hour meter
- Swiveling control panel
- Cooling-agent equipment
| Machine type |
UFB 1000 |
UFB 1000 C |
| Table/Option |
| Mounting area |
1600/2000 x 1000 mm |
1600/2000 x 1000 mm |
| Table height |
980 mm |
980 mm |
| Number of T-slots |
7 |
7 |
| Slots range according to DIN 650 |
22 mm |
22 mm |
| Centre distance |
140 mm |
140 mm |
| Table load maximum |
4000/7000 kg |
4000/7000 kg |
| Adjustment range/option |
| Longitudinal axis |
1600/2000 mm |
1600/2000 mm |
| Transverse axis |
800 mm |
800 mm |
| Vertical axis |
1000 mm |
1000 mm |
| Main drive |
| 3-phase motor, servo, power at 60% ED |
25 kW |
25 kW |
| Torque maximum |
1150 Nm |
1150 Nm |
| Key rpm |
212 min-1 |
212 min-1 |
| Tool-holding fixtures |
ISO 50, according to DIN 2079 |
ISO 50, according to DIN 2079 |
| For tools |
DIN 69871/72 |
DIN 69871/72 |
| Spindle diameter in front bearing |
100 mm |
100 mm |
| Speed range, continuously variable |
| Programmable S-analog |
35-3550 min-1 |
35-3550 min'1 |
| Gear shifting, automatically operated |
2 |
2 |
| Feed drives |
| 3-phase servo motor, single drive, continuously variable |
|
|
| Feed range longitudinal, transverse, vertical |
1-4000 mm/min |
1-4000 mm/min |
| Feed force in all axes |
12000 N |
12000 N |
| Rapid transverse |
| Longitudinal, transverse, vertical |
10000 mm/min |
10000 mm/min |
| Tool changer, Chain magazine |
| Number of magazine places with variable position encoding (upon request
at an additional charge) |
- |
30(60) |
| Maximum tool diameter |
- |
140 mm |
| Maximum tool weight |
- |
15 kg |
| Maximum tool length |
- |
300 mm |
| Throat/option with machines with |
| Horizontal/vertical milling head (HV), middle of the vertical spindle
to leading |
0-800 mm |
0-800 mm |
| Middle of horizontal spindle to top edge of table |
150-1150 mm |
150-1150 mm |
| Horizontal/vertical milling head (HVD), middle of vertical spindle to
leading edge of table |
75-875 mm |
75-875 mm |
| Middle of horizontal spindle to top edge of table |
150-1150 mm |
150-1150 mm |
| Connection rating, dimensions and weight |
| Space |
equipment-related |
equipment-related |
| Total weight |
equipment-related |
equipment-related |
| Total connection rating |
36 kVA |
36 kVA |
|
